METRIC PIN SHAFTS
FOR EXCAVATORS / LOADERS / DOZERS
BUCKETS & ATTACHMENTS

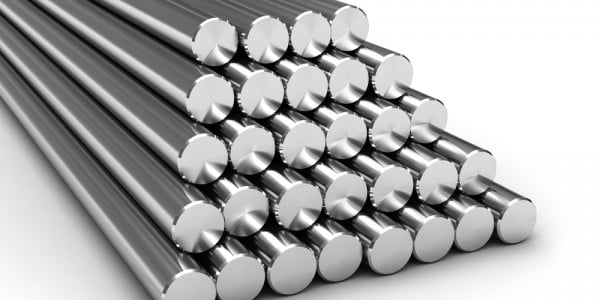

4140 Grade, Ground, Turned & Polished
ONLY SOLD IN OUR GLASSBORO,NJ LOCATION
| SIZES | $ price per ft cut to your length quoted on request plus sawing charges |
Ordering $ Per FT |
Weight Per FT In Pounds |
| 30mm = 1.181" | $ 24.41 / FT | $ 18.78 / FT (12' Random Length) |
3.7246 |
| 35mm = 1.377" | $ 29.90 / FT | $ 23.00 / FT (12' Random Length) |
5.0700 |
| 40mm = 1.574" Grade 1045 TGP |
$ 25.84 / FT (Only 10' 10" Available) |
$ 19.88 / FT (Only 10' 10" Available) |
6.6216 |
| 40mm = 1.574" Grade 4140 TGP |
$ 42.85 / FT | $ 32.96 / FT (12' Random Length) |
6.6216 |
| 45mm = 1.771" | $ 43.43 / FT | $ 33.41 / FT (12' Random Length) |
8.3804 |
| 50mm = 1.968" | $ 50.14 / FT | $ 38.57 / FT (15' - 20' Random Length) |
10.3462 |
| 55mm = 2.165" | $ 58.15 / FT | $ 44.73 / FT (15' - 20' Random Length) |
12.5189 |
| 60mm = 2.362" | $ 61.14 / FT | $ 47.03 / FT (15' - 20' Random Length) |
14.8986 |
| 65mm = 2.558" | $ 74.88 / FT | $ 57.60 / FT (15' - 20' Random Length) |
17.4851 |
| 70mm = 2.755" | $ 87.53 / FT | $ 67.33 / FT (15' - 20' Random Length) |
20.2786 |
| 80mm = 3.149" | $ 99.10 / FT | $ 77.42 / FT (15' - 20' Random Length) |
26.4863 |
| 90mm = 3.543" | $ 126.00 / FT | $ 99.00 / FT (15' - 20' Random Length) |
33.5218 |
| 100mm = 3.937" | $ 159.00 / FT | $ 127.00 / FT (15' - 20' Random Length) |
41.3849 |
Metric Pin Shaft Washers
| 2.362" + id 4-1/2" od | 2.558" + id 5" od | 2.755" + id 5" od | 3.149" + id 5-3/4" od | 3.543" + id 6" od | 3.937" + id 6-1/2" od | |
| THICKNESS | 60mm + id 4-1/2" od | 65mm + id 5" od | 70mm + id 5" od | 80mm + id 5-3/4" od | 90mm + id 6" od | 100mm + id 6-1/2" od |
| 1/8" | $ 4.87 | $ 5.07 | $ 5.07 | $ 5.28 | $ 5.48 | $ 5.73 |
| 3/16" | $ 5.30 | $ 5.61 | $ 5.61 | $ 5.91 | $ 6.22 | $ 6.60 |
| 1/4" | $ 6.14 | $ 6.14 | $ 6.14 | $ 6.55 | $ 6.96 | $ 7.47 |
| 5/16" | $ 6.17 | $ 6.68 | $ 6.68 | $ 7.19 | $ 7.70 | $ 8.34 |
| 3/8" | $ 7.60 | $ 9.22 | $ 9.22 | $ 9.83 | $ 10.44 | $ 11.71 |
| 1/2" | $ 8.47 | $ 10.29 | $ 10.29 | $ 11.11 | $ 11.92 | $ 13.44 |
Last Updated: 10/11/22
We stock full lengths of 30mm to 100mm pin shafts Cut to size & available for shipping
Available for your convenience, pre-cut pin shafts with FREE bushing
Steel & zinc plated shims available from 30mm to 100mm
METRIC PIN SHAFTS
FOR EXCAVATORS / LOADERS / DOZERS / BUCKETS & ATTACHMENTS
4140 Grade, Ground, Turned & Polished
ONLY SOLD IN OUR GLASSBORO, NJ LOCATION
ONLY SOLD IN OUR GLASSBORO, NJ LOCATION
|
Sizes |
Bushing ID (mm) (Inches) |
Bushing OD (mm) (Inches) |
Tolerance (Inches) ≈Approximately |
Bushing Wall Thickness (mm) (Inches) |
Length Pin/Bushing (Inches) |
Pin Material |
Cut to Length Price Additional Cut Charge |
Price Uncut As Is |
Weight Per Ft in Pounds |
Set Price |
|||||||||||||||||
|

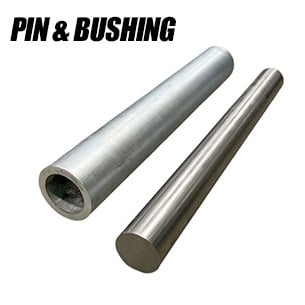

6mm Pin & Bushing Set |
6.75mm 0.266” |
12.5mm 0.493” |
≈0.030” |
2.875mm 0.114” |
48”/48” |
Cold Rolled Steel |
|
|
0.60 Set Weight |
$12.98 |
|||||||||||||||||
|
10mm Pin & Bushing Set |
10.75mm 0.424” |
16.5mm 0.650” |
≈0.030” |
2.875mm 0.114” |
48”/48” |
Cold Rolled Steel |
|
|
1.05 Set Weight |
$19.98 |
|||||||||||||||||
|
12mm Pin & Bushing Set |
12.75mm 0.502” |
20.5mm 0.801” |
≈0.030” |
3.875mm 0.153” |
48”/48” |
Cold Rolled Steel |
|
|
1.65 Set Weight |
$29.98 |
|||||||||||||||||
|
16mm Pin & Bushing Set |
16.75mm 0.660” |
25.5mm 1.004” |
≈0.030” |
4.375mm 0.173” |
48”/48” |
4140 TGP |
|
|
2.55 Set Weight |
$49.98 |
|||||||||||||||||
|
19mm Pin & Bushing Set |
19.75mm 0.778” |
29.5mm 1.162” |
≈0.030” |
4.875mm 0.192” |
48”/48” |
4140 TGP |
|
|
3.50 Set Weight |
$54.98 |
|||||||||||||||||
|
25mm Pin & Bushing Set |
25.75mm 1.014” |
36.5mm 1.437” |
≈0.030” |
5.375mm 0.212” |
48/48” |
4140 TGP |
|
|
5.40 Set Weight |
$79.98 |
|||||||||||||||||
|
30mm Pin & Bushing Set |
30.75mm 1.211” |
45.5mm 1.792” |
≈0.030” |
7.375mm 0.290” |
48”/48” |
4140 TGP |
|
|
8.40 Set Weight |
$109.98 |
|||||||||||||||||
|

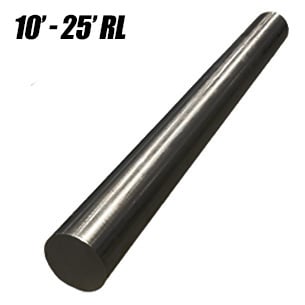

30mm Pin Only |
|
|
|
|
12’ RL |
4140 TGP |
$24.41 /FT |
$18.78 /FT |
3.75 |
|
|||||||||||||||||
|
35mm Pin Only |
|
|
|
|
12’ RL |
4140 TGP |
$29.90 /FT |
$23.00 /FT |
5.10 |
|
|||||||||||||||||
|
40mm Pin Only |
|
|
|
|
Only 10’ 10” Available |
1045 TGP |
$25.84 /FT |
$19.88 /FT |
6.65 |
|
|||||||||||||||||
|
40mm Pin Only |
|
|
|
|
12’ RL |
4140 TGP |
$42.85 /FT |
$32.96 /FT |
6.65 |
|
|||||||||||||||||
|
45mm Pin & Bushing Set |
45.75mm 1.802” |
60.25mm 2.372” |
≈0.030” |
7.25mm 0.286” |
26”/24” |
4140 TGP |
|
|
14.80 Set Weight |
$97.96 |
|||||||||||||||||
|
45mm Pin Only |
|
|
|
|
12’ RL |
4140 TGP |
$43.43 /FT |
8.40 |
|
||||||||||||||||||
|
50mm Pin & Bushing Set |
50.75mm 1.999” |
70.25mm 2.766” |
≈0.030” |
9.75mm 0.384” |
26”/24” |
4140 TGP |
|
|
20.05 Set Weight |
$131.96 |
|||||||||||||||||
|
50mm Pin Only |
|
|
|
|
15’- 20’ RL |
4140 TGP |
$50.14 /FT |
$38.57 /FT |
10.35 |
|
|||||||||||||||||
|
55mm Pin Only |
|
|
|
|
15’- 20’ RL |
4140 TGP |
$58.15 /FT |
$44.73 /FT |
12.55 |
|
|||||||||||||||||
|
60mm Pin Only |
|
|
|
|
15’ - 20’ RL |
4140 TGP |
$61.14 /FT |
$47.03 /FT |
14.90 |
|
|||||||||||||||||
|
65mm Pin & Bushing Set |
65.75mm 2.589” |
90.25mm 3.554” |
≈0.030” |
12.25mm 0.483” |
26”/24” |
4140 TGP |
|
|
33.00 Set Weight |
$212.96 |
|||||||||||||||||
|
65mm Pin Only |
|
|
|
|
15’- 20’ RL |
4140 TGP |
$74.88 /FT |
$57.60 /FT |
17.50 |
|
|||||||||||||||||
|
70mm Pin Only |
|
|
|
|
15’- 20’ RL |
4140 TGP |
$87.53 /FT |
$67.33 /FT |
20.30 |
|
|||||||||||||||||
|
80mm Pin & Bushing Set |
80.75mm 3.180” |
105.25mm 4.144” |
≈0.030” |
12.25mm 0.483” |
26”/24” |
4140 TGP |
|
|
45.50 Set Weight |
$298.96 |
|||||||||||||||||
|
80mm Pin Only |
|
|
|
|
15’- 20’ RL |
4140 TGP |
$99.10 /FT |
$77.42 /FT |
26.50 |
|
|||||||||||||||||
|
90mm Pin & Bushing Set |
90.75mm 3.573” |
120.25mm 4.735” |
≈0.030” |
14.75mm 0.580” |
26”/24” |
4140 TGP |
|
|
58.70 Set Weight |
$374.96 |
|||||||||||||||||
|
90mm Pin Only |
|
|
|
|
15’- 20’ RL |
4140 TGP |
$129.00 /FT |
$99.00 /FT |
33.55 |
|
|||||||||||||||||
|
100mm Pin & Bushing Set |
100.75mm 3.967” |
130.25mm 5.128” |
≈0.030” |
14.75mm 0.580” |
26”/24” |
4140 TGP |
|
|
69.10 Set Weight |
$444.96 |
|||||||||||||||||
|
100mm Pin Only |
|
|
|
|
15’- 20’ RL |
4140 TGP |
$159.00 /FT |
$127.00 /FT |
41.40 |
|
|||||||||||||||||
* TGP - Turned, Grounded, & Polished RL - Random Length
Metric Pin Shaft Washers
|
Plasma Cut Pin Shaft Washers Cut From Bare Steel |
|||
|
Inner Diameter |
Outer Diameter |
Thickness |
Price |
|
60mm (2.36”) |
4-1/2” |
1/8” |
$4.87 |
|
3/16” |
$5.30 |
||
|
1/4” |
$6.14 |
||
|
5/16” |
$6.17 |
||
|
3/8” |
$7.60 |
||
|
1/2” |
$8.74 |
||
|
65mm (2.55”) |
5” |
1/8” |
$5.07 |
|
3/16” |
$5.61 |
||
|
1/4” |
$6.14 |
||
|
5/16” |
$6.68 |
||
|
3/8” |
$9.22 |
||
|
1/2” |
$10.29 |
||
|
70mm (2.755”) |
5” |
1/8” |
$5.07 |
|
3/16” |
$5.61 |
||
|
1/4” |
$6.14 |
||
|
5/16” |
$6.68 |
||
|
3/8” |
$9.22 |
||
|
1/2” |
$10.29 |
||
|
80mm (3.149”) |
5-3/4” |
1/8” |
$5.28 |
|
3/16” |
$5.91 |
||
|
1/4” |
$6.55 |
||
|
5/16” |
$7.19 |
||
|
3/8” |
$9.83 |
||
|
1/2" |
$11.11 |
||
|
90mm (3.543”) |
6” |
1/8” |
$5.48 |
|
3/16” |
$6.22 |
||
|
1/4” |
$6.96 |
||
|
5/16” |
$7.70 |
||
|
3/8” |
$10.44 |
||
|
1/2” |
$11.92 |
||
|
100mm (3.937”) |
6-1/2” |
1/8” |
$5.73 |
|
3/16” |
$6.60 |
||
|
1/4” |
$7.47 |
||
|
5/16” |
$8.34 |
||
|
3/8” |
$11.71 |
||
|
1/2” |
$13.44 |
||
|

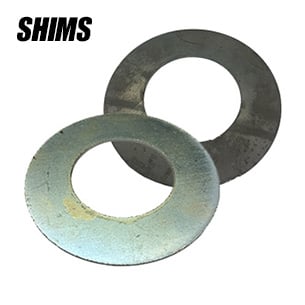

Factory Bucket Pin Shims |
||||
|
Inner Diameter |
Outer Diameter |
Thickness |
Material |
Price |
|
30.5mm (1.20”) |
60mm (2.36”) |
2mm (1/16”) |
Steel Zinc Plated |
$3.99 |
|
30.5mm (1.20”) |
60mm (2.36”) |
4mm (3/16”) |
Steel Zinc Plated |
$4.99 |
|
35.5mm (1.39”) |
60mm (2.36”) |
2mm (1/16”) |
Steel Zinc Plated |
$3.99 |
|
35.5mm (1.39”) |
60mm (2.36”) |
4mm (3/16”) |
Steel Zinc Plated |
$4.99 |
|
40.5mm (1.59”) |
80mm (3.14”) |
2mm (1/16”) |
Steel Zinc Plated |
$3.99 |
|
40.5mm (1.59”) |
80mm (3.14”) |
4mm (3/16”) |
Steel Zinc Plated |
$4.99 |
|
45.5mm (1.79”) |
85mm (3.34”) |
2mm (1/16”) |
Steel Zinc Plated |
$3.99 |
|
45.5mm (1.79”) |
85mm (3.34”) |
4mm (3/16”) |
Steel Zinc Plated |
$4.99 |
|
50.5mm (1.98”) |
95mm (3.74”) |
2mm (1/16”) |
Steel Zinc Plated |
$3.99 |
|
50.5mm (1.98”) |
95mm (3.74”) |
4mm (3/16”) |
Steel Zinc Plated |
$4.99 |
|
55.5mm (2.18”) |
110mm (4.33”) |
2mm (1/16”) |
Steel Zinc Plated |
$3.99 |
|
55.5mm (2.18”) |
110mm (4.33”) |
4mm (3/16”) |
Steel Zinc Plated |
$4.99 |
|
60.5mm (2.38”) |
120mm (4.72”) |
2mm (1/16”) |
Steel Zinc Plated |
$4.99 |
|
60.5mm (2.38”) |
120mm (4.72”) |
4mm (3/16”) |
Steel Zinc Plated |
$5.99 |
|
70.5mm (2.77”) |
140mm (5.51”) |
2mm (1/16”) |
Steel Zinc Plated |
$4.99 |
|
70.5mm (2.77”) |
140mm (5.51”) |
4mm (3/16”) |
Steel Zinc Plated |
$5.99 |
|
80.5mm (3.16”) |
160mm (6.26”) |
2mm (1/16”) |
Steel Zinc Plated |
$4.99 |
|
80.5mm (3.16”) |
160mm (6.26”) |
4mm (3/16”) |
Steel Zinc Plated |
$5.99 |
|
90.5mm (3.56”) |
180mm (7.08”) |
2mm (1/16”) |
Steel Zinc Plated |
$4.99 |
|
90.5mm (3.56” |
180mm (7.08”) |
4mm (3/16”) |
Steel Zinc Plated |
$5.99 |
Last Updated: 12/7/23
