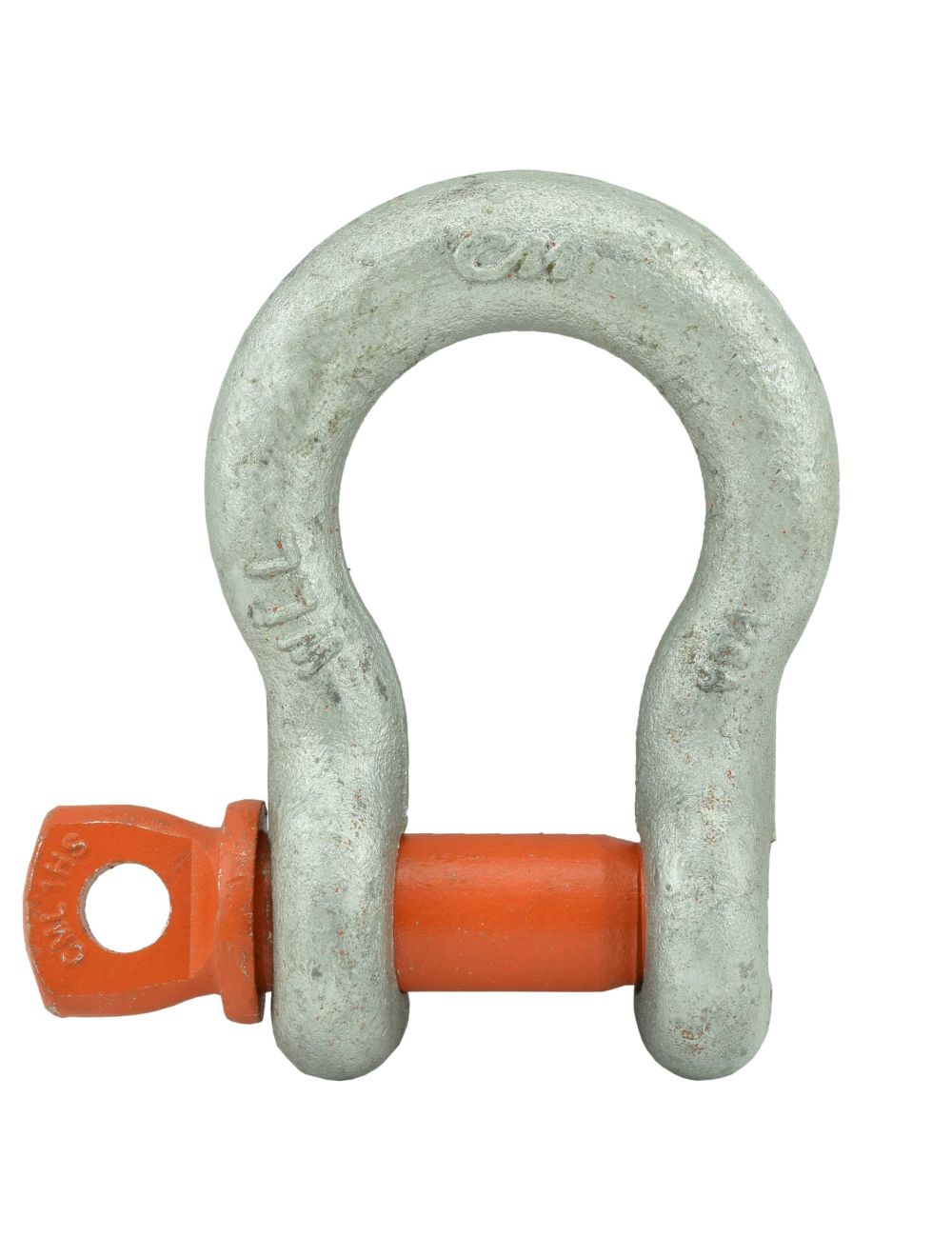

  • Columbus McKinnon M653G 7/8" Super Strong Galvanized Screw Pin Anchor Shackle

Columbus McKinnon M653G 7/8" Super Strong Galvanized Screw Pin Anchor Shackle

Item# M653G | UPC 663548
$35.99

Availability: In stock*

*Prices and inventory are based out of our Glassboro, NJ location. Prices and inventory can vary between locations. Call your local store to confirm pricing & availability.

Details

  • Size: 7/8"
  • Pin diameter: 1"
  • Opening width: 1-7/16"
  • Working load limit: 17,000 lb
  • Manufacturing process: Drop forged
  • Finish: Hot dipped galvanized
  • Usage: Recommended for low vibration and stationary applications
  • 6:1 design factor
  • Rated for overhead lifting
  • Alloy quenched and tempered pins
  • Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
  • Anchor shape design allows the shackle to be used in multidimensional pulling applications
  • Screw pin design allows for an easy and efficient installation and removal
  • Shackles meet dimensional requirements and exceed performance requirements of RR-C-271D Amendment 1, and ASME B30.26
  • Note: Screw pin anchor shackles are able to handle angular pulls, but pulling at an angle significantly reduces the shackle's working load limit. Screw pin anchor shackles should not exceed the working load limit.
  • For dimensional data on Columbus McKinnon screw pin anchor shackles, Click here.

Additional Information

Item Number M653G
UPC 663548
Weight (lbs) 3.5000
Manufacturer Columbus McKinnon
