Designed to install using standard sized ANSI tolerance drill bits
Carbon steel, heat treated material
Coating: Zinc plated
Hex washer head
Wrench size: 3/8"
Recommended fixture hole size: 1/2" to 9/16"
Minimum embedment: 2-1/2"

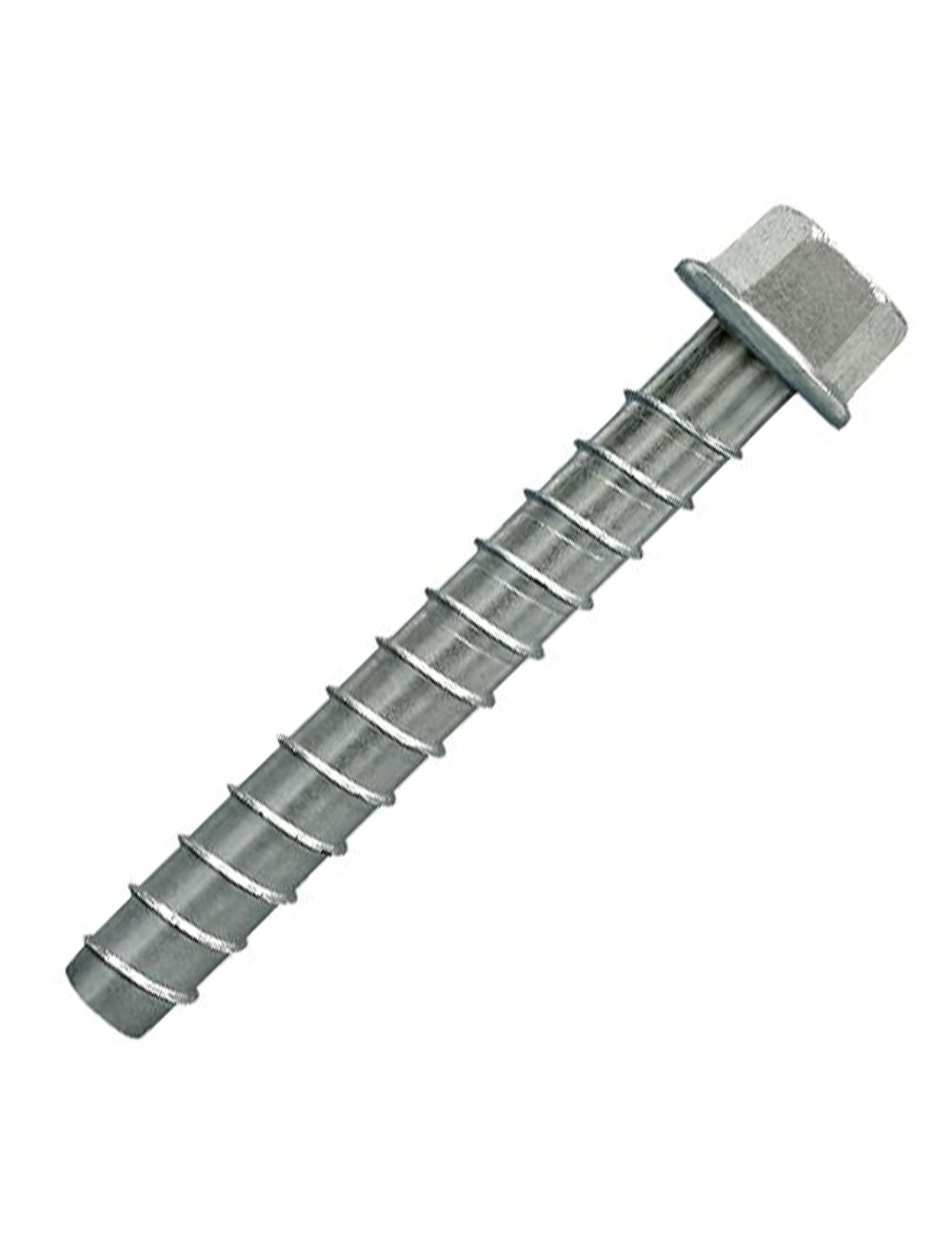

Patented high-strength screw anchor for concrete and masonry
Optimum performance in both cracked and uncracked concrete
Self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings
Tested per AC193 to ensure outstanding performance in both cracked and uncracked concrete
Threads along the length of the anchor undercut the concrete and efficiently transfer the load to the base material for higher load capacity & vibration resistance
The mechanical interlock of the threads and the ratchet teeth on the underside of the head help prevent the anchor from loosening in vibratory conditions
The Titen HD anchor has been tested to 12.6 million vibratory cycles with no performance reductions
Specialized heat treating process creates superior surface hardness at the tip to facilitate cutting, while at the same time not compromising ductility within the anchor body
The anchor does not exert expansion forces on the base material allowing less spacing & edge distance requirements
Serrated teeth on the tip of the Titen HD screw anchor facilitate cutting and reduce installation torque
Testing shows that when compared to competitors, the Titen HD requires 50% less torque to be installed in concrete
Titen HD anchors are removable and ideal for temporary anchoring (e.g. formwork, bracing) or applications where fixtures may need to be moved
For tension load values, shear load values, load adjustment factors, edge distances, and anchor spacing requirements CLICK HERE
Codes: ICC-ES ESR-2713 (concrete); ICC-ES ESR-1056 (CMU); City of L.A. RR25741(concrete)City of L.A. RR25560(CMU); Florida FL 11506.7; Factory Mutual 3017082, 3035761 and 3043442
The Titen HD anchor has been tested in accordance with ICC-ES AC193, ACI 355.2 and ICC-ES AC106 for static tension & shear loading in cracked and uncracked concrete, seismic & wind loading in cracked and uncracked concrete & performance in uncracked masonry
Simpson Strong-Tie THD37500H can be used as a cross reference to HILTI Kwik-HUS EZ,
