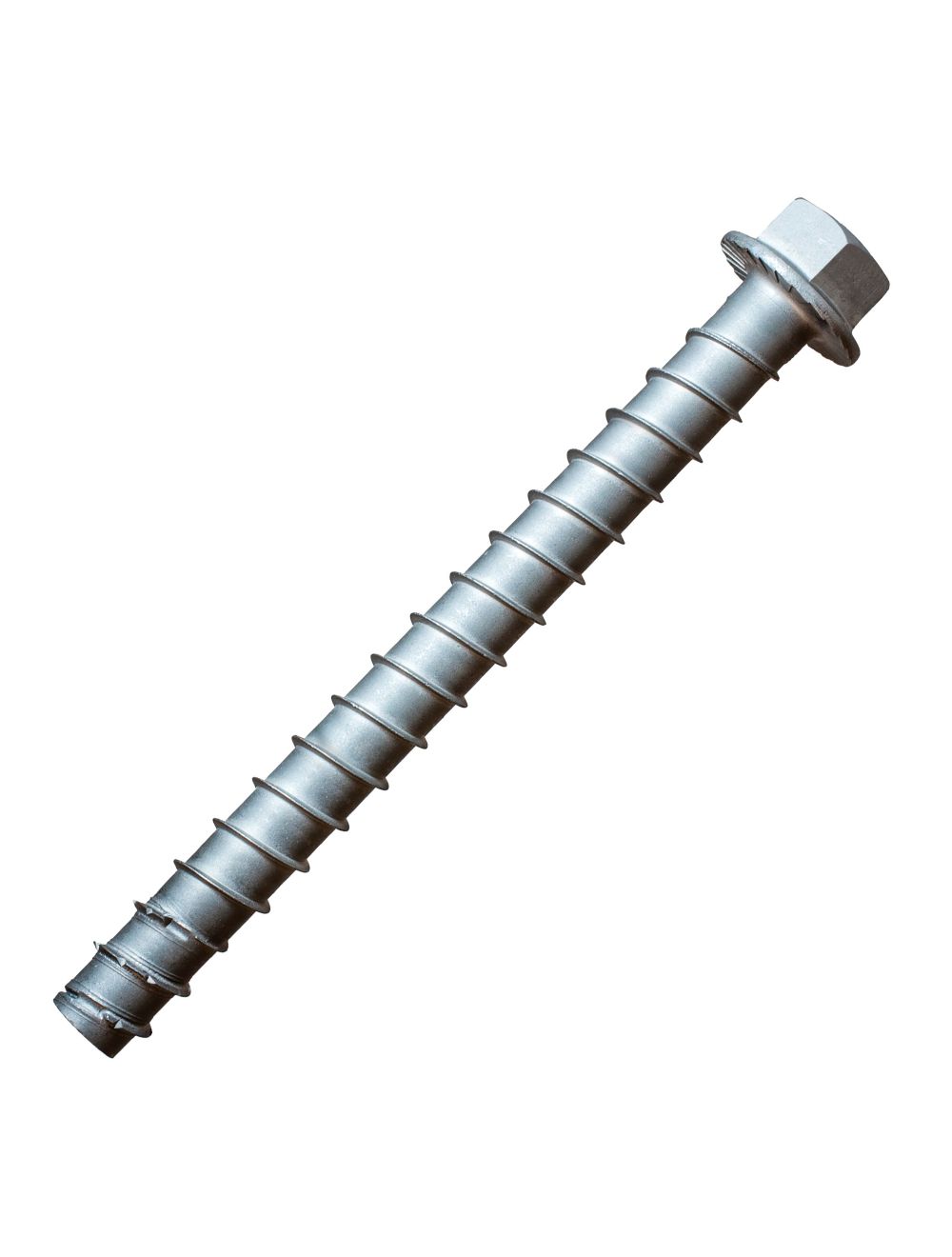

3/8" x 3" 316 Stainless Steel Titen HD Large Diameter Heavy Duty Screw Anchor - 50 pc box
Item# THD37300H6SS |
UPC 707392978992
$272.00
UPC
707392978992
Availability
- In stock at Glassboro, NJ
- Out of stock at Howell, NJ
- Diameter: 3/8"
- Length: 3"
- Drill bit size: 3/8"
- Material:316 Stainless steel
- Coating: Plain
- Head type: 9/16" hex washer head
- Minimum embedment: 2-1/2"
- Patented high-strength screw anchor for concrete and masonry
- Self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings
- Tested per AC193 to ensure outstanding performance in both cracked and uncracked concrete
- Threads along the length of the anchor undercut the concrete and efficiently transfer the load to the base material for higher load capacity & vibration resistance
- The mechanical interlock of the threads and the ratchet teeth on the underside of the head help prevent the anchor from loosening in vibratory conditions
- Specialized heat treating process creates superior surface hardness at the tip to facilitate cutting, while at the same time not compromising ductility within the anchor body
- The anchor does not exert expansion forces on the base material allowing less spacing & edge distance requirements
- Serrated teeth on the tip of the Titen HD screw anchor facilitate cutting and reduce installation torque
- Titen HD anchors are removable and ideal for temporary anchoring (e.g. formwork, bracing) or applications where fixtures may need to be moved
- For tension load values, shear load values, load adjustment factors, edge distances, and anchor spacing requirements CLICK HERE
- Codes: ICC-ES ESR-2713 (concrete); ICC-ES ESR-1056 (CMU); City of L.A. RR25741(concrete)City of L.A. RR25560(CMU); Florida FL 11506.7; Factory Mutual 3017082, 3035761 and 3043442
- Simpson Strong-Tie Titen HD can be used as a cross reference to HILTI Kwik-HUS EZ, Powers Wedge-Bolt and ITW Redhead LDT
| Diameter | 3/8" (0.3750) |
|---|---|
| Length | 3" (3.0000) |
| Material | 316 Stainless Steel |
| Finish | Plain |
| Head Type | Hex head |
| UPC | 707392978992 |
| Weight | 6.450000 |
| Item Number | THD37300H6SS |
| Manufacturer | Simpson Strong-Tie |
