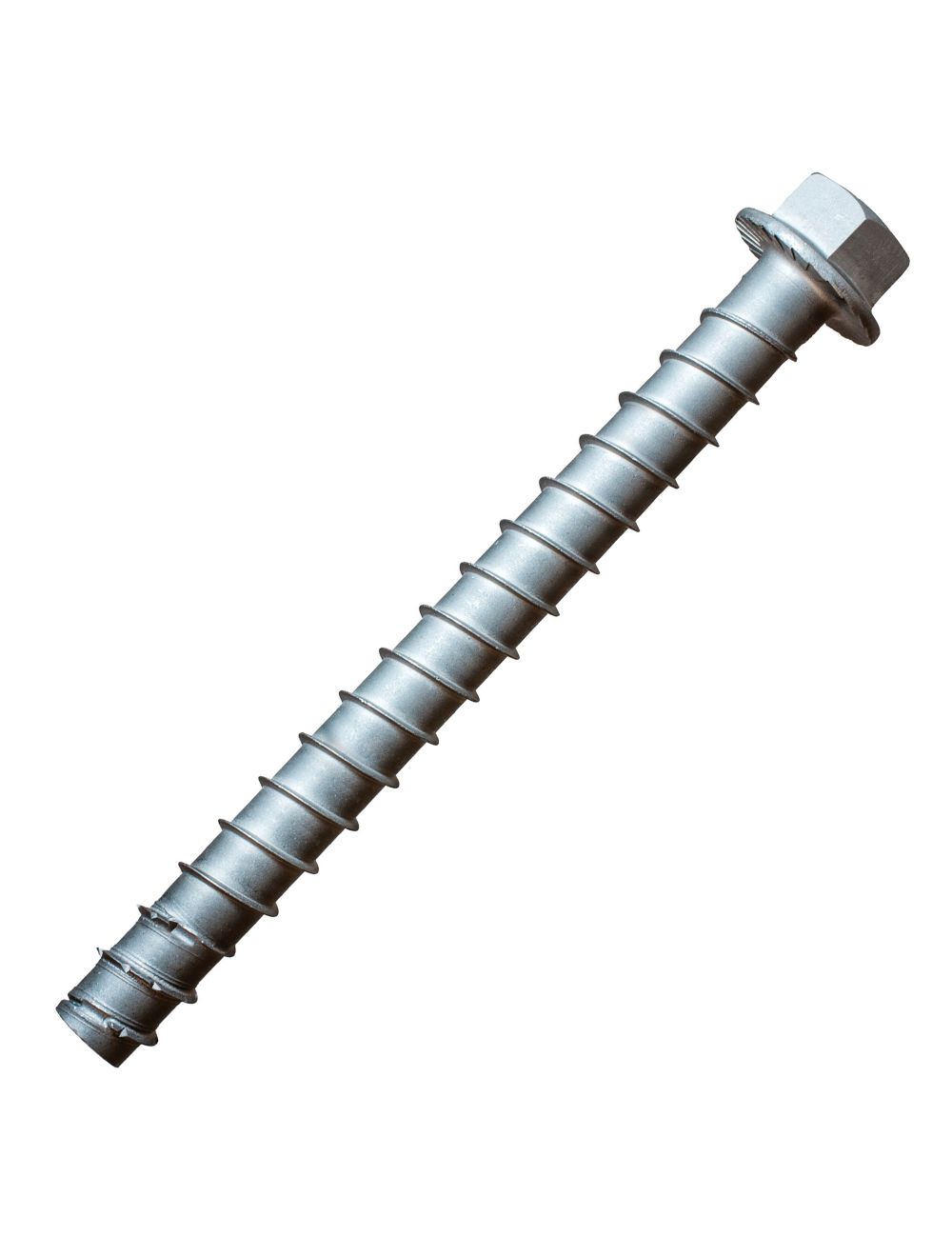

3/4" x 5" 316 Stainless Steel Titen HD Large Diameter Screw Anchor - 5 pc box

Item# THDB75500H6SS | UPC 707392999133
  • In stock at Glassboro, NJ
  • Out of stock at Howell, NJ
*Prices and inventory are based out of our Glassboro, NJ location. Prices and inventory can vary between locations. Call your local store to confirm pricing & availability.
  • Diameter: 3/4"
  • Length: 5"
  • Drill bit size: 3/4"
  • Material: 316 Stainless Steel
  • Coating: Plain
  • Head type: 1-1/8" hex washer head
  • Minimum embedment: 5-1/2"
  • Patented high-strength screw anchor for concrete and masonry
  • Self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings
  • Tested per AC193 to ensure outstanding performance in both cracked and uncracked concrete
  • Threads along the length of the anchor undercut the concrete and efficiently transfer the load to the base material for higher load capacity & vibration resistance
  • The mechanical interlock of the threads and the ratchet teeth on the underside of the head help prevent the anchor from loosening in vibratory conditions
  • Specialized heat treating process creates superior surface hardness at the tip to facilitate cutting, while at the same time not compromising ductility within the anchor body
  • The anchor does not exert expansion forces on the base material allowing less spacing & edge distance requirements
  • Serrated teeth on the tip of the Titen HD screw anchor facilitate cutting and reduce installation torque
  • Titen HD anchors are removable and ideal for temporary anchoring (e.g. formwork, bracing) or applications where fixtures may need to be moved
  • For tension load values, shear load values, load adjustment factors, edge distances, and anchor spacing requirements CLICK HERE
  • Codes: ICC-ES ESR-2713 (concrete); ICC-ES ESR-1056 (CMU); City of L.A. RR25741(concrete)City of L.A. RR25560(CMU); Florida FL 11506.7; Factory Mutual 3017082, 3035761 and 3043442
  • Simpson Strong-Tie Titen HD can be used as a cross reference to HILTI Kwik-HUS EZ, Powers Wedge-Bolt and ITW Redhead LDT
More Information
Diameter 3/4" (0.7500)
Length 5" (5.0000)
Material 316 Stainless Steel
Finish Plain
Head Type Hex head
UPC 707392999133
Weight 4.700000
Item Number THDB75500H6SS
Manufacturer Simpson Strong-Tie
