  • 1/4-20 Serrated Hex Flange Nut 18-8 Stainless Steel - 100 pcs per bag

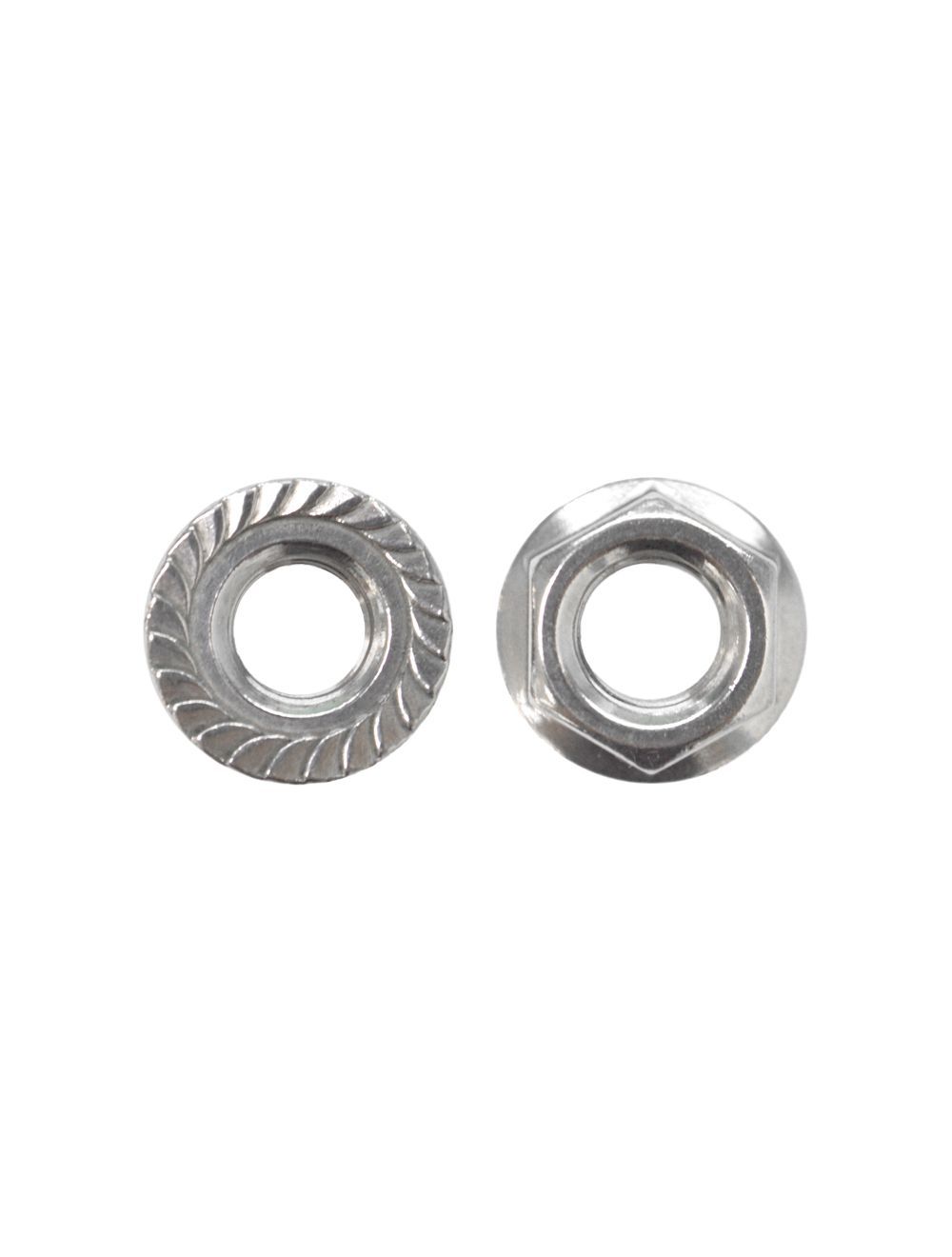

1/4-20 Serrated Hex Flange Nut 18-8 Stainless Steel - 100 pcs per bag

Item# 190001000 | UPC 655427

Quick Overview

1/4-20 Serrated Hex Flange Nut 18-8 Stainless Steel - 100 pcs per bag
$3.44

Availability: In stock*

*Prices and inventory are based out of our Glassboro, NJ location. Prices and inventory can vary between locations. Call your local store to confirm pricing & availability.

Details

  • Diameter: 1/4"
  • Threads per inch: 20
  • Thickness (Height): 15/64"
  • Wrench size (Width across flats): 7/16"
  • Flange diameter: 19/32"
  • Serrated hex flange nut
  • Material: Cold worked 18-8 stainless steel
  • 18-8 stainless steel contains 18% chromium and 8% nickel
  • Finish: Plain
  • Hexagonal shaped internally threaded fastener used in conjuction with a male threaded part with an enlarged circular base and serrations on the bearing surface
  • The serrations displace natural material on the mating surface when tightened forming a connection that resists loosening
  • The wide flange diameter will span oversized or poorly aligned holes
  • Offer a high degree of corrosion resistance and are considered non-magnetic, however cold working can make the fasteners slightly magnetic
  • Used in products that require general atmospheric corrosion, such as chemical food processing equipment and where aesthetics is a priority
  • Use with 18-8 stainless steel fasteners

Additional Information

Diameter 1/4" (0.2500)
Length No
Hook Length No
Thread Length No
Thread Size 20 Threads Per Inch
Grade No
Finish Plain Finish
Material Stainless Steel
Specification No
Thickness No
Wrench Size 7/16" (0.4375)
Inner Diameter No
Outer Diameter No
Order Qty Increment 100
Scanbarcode *658663*
Location 52A
QTY 85
boxlabel bags
upperboxlabel Bag
Units ( BOX = 7,000 ) ( BAG = 100 ) ( BOX2 = 3,000 ) ( BAG2 = 1,000 ) ( BOX5 = 5,500 )
Item Number 190001000
UPC 655427
Weight (lbs) 0.6900
Manufacturer Import
