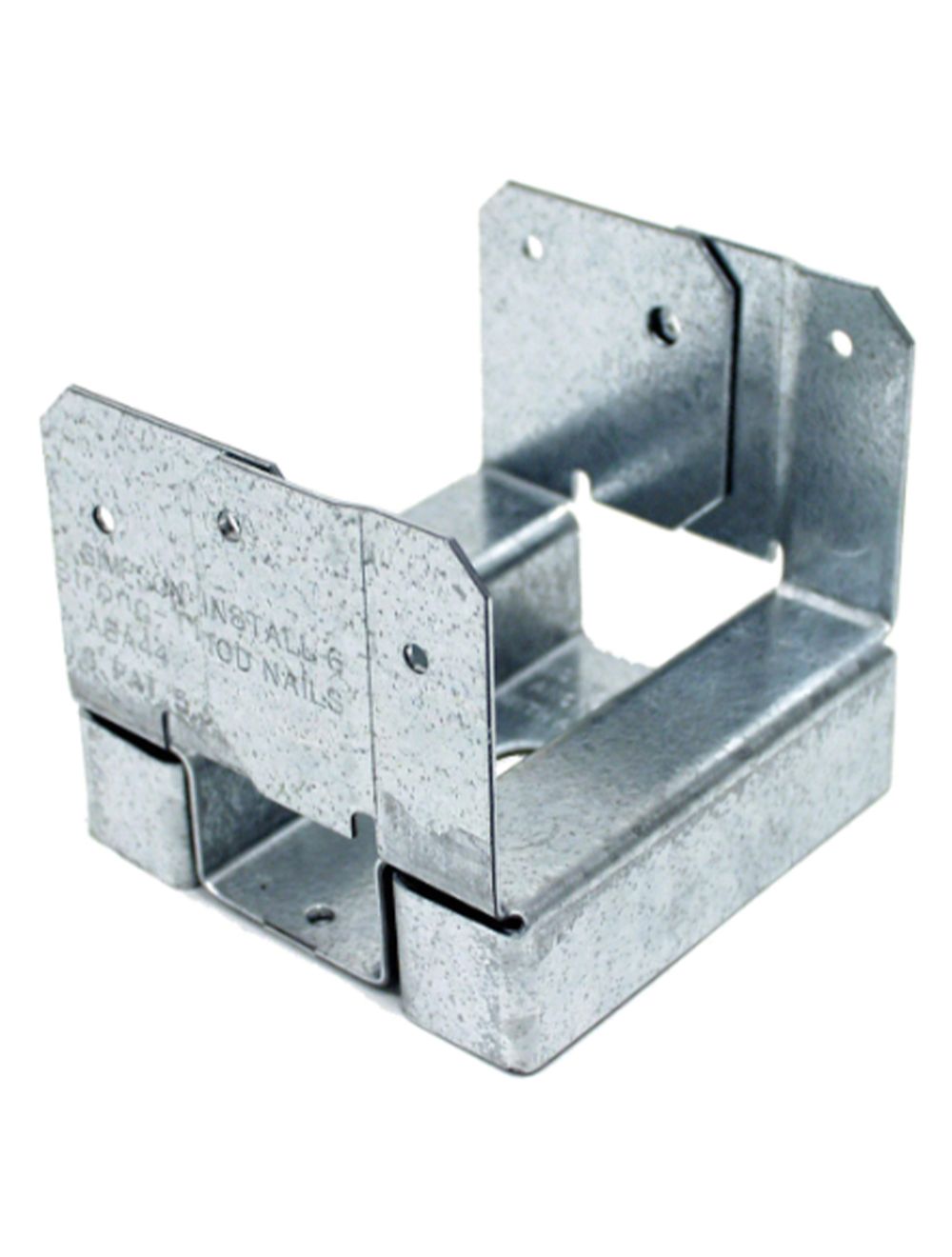

Simpson Strong-Tie ABA46Z 4" x 6" Post Base
Item# ABA46Z |
UPC 044315376108
$19.99
UPC
044315376108
Availability
- In stock at Glassboro, NJ
- In stock at Howell, NJ
- Width: 3-9/16"
- Length: 5-3/16"
- Height: 3-1/8"
- Anchor diameter: 5/8"
- Nominal post size: 4" x 6"
- Base material: 14 Gauge
- Strap material: 14 Gauge
- Finish: ZMAX coating
- Code reference: I3, F1, and L5
- For fasteners and allowable loads CLICK HERE
- Fasten using nails or Strong-Drive SD Connector screws
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top supported installations
- Place the base, load transfer plate and nut on the anchor bolt
- Approved for installation with the Strong-Drive SD connector screw
| UPC | 044315376108 |
|---|---|
| Weight | 1.180000 |
| Item Number | ABA46Z |
| Manufacturer | Simpson Strong-Tie |
