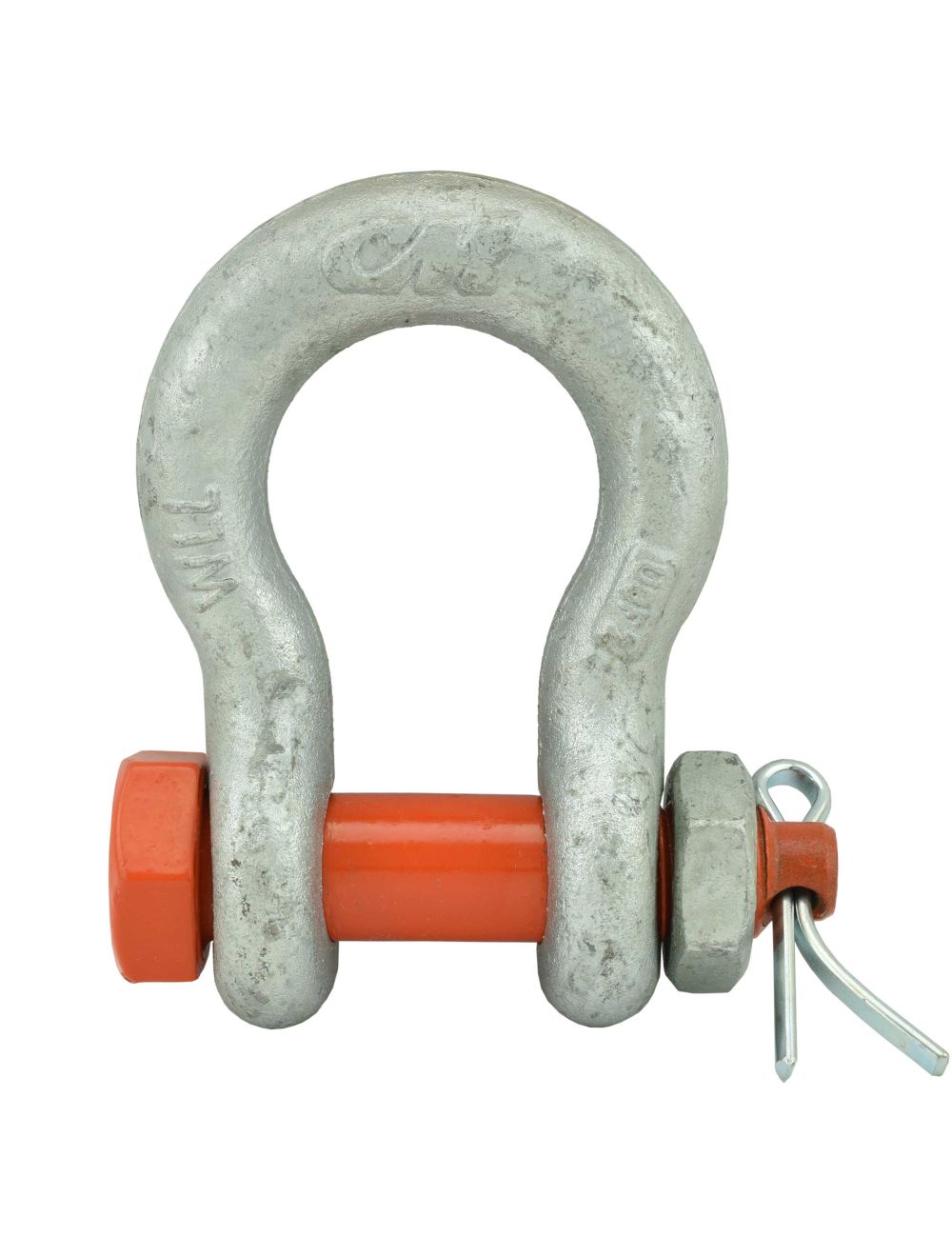

Usage: Recommended for use in semi-permanent applications where pin removal is minimal
6:1 design factor
Rated for overhead lifting
Alloy quenched and tempered pins
Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
Anchor shape design allows the shackle to be used in multidimensional pulling applications
Shackles meet dimensional requirements and exceed performance requirements of RR-C-271D Amendment 1, and ASME B30.26
Note: Safety pin anchor shackles are able to handle angular pulls, but pulling at an angle significantly reduces the shackle's working load limit. Safety pin anchor shackles should not exceed the working load limit.
For dimensional data on Columbus McKinnon safety pin anchor shackles, Click here.
