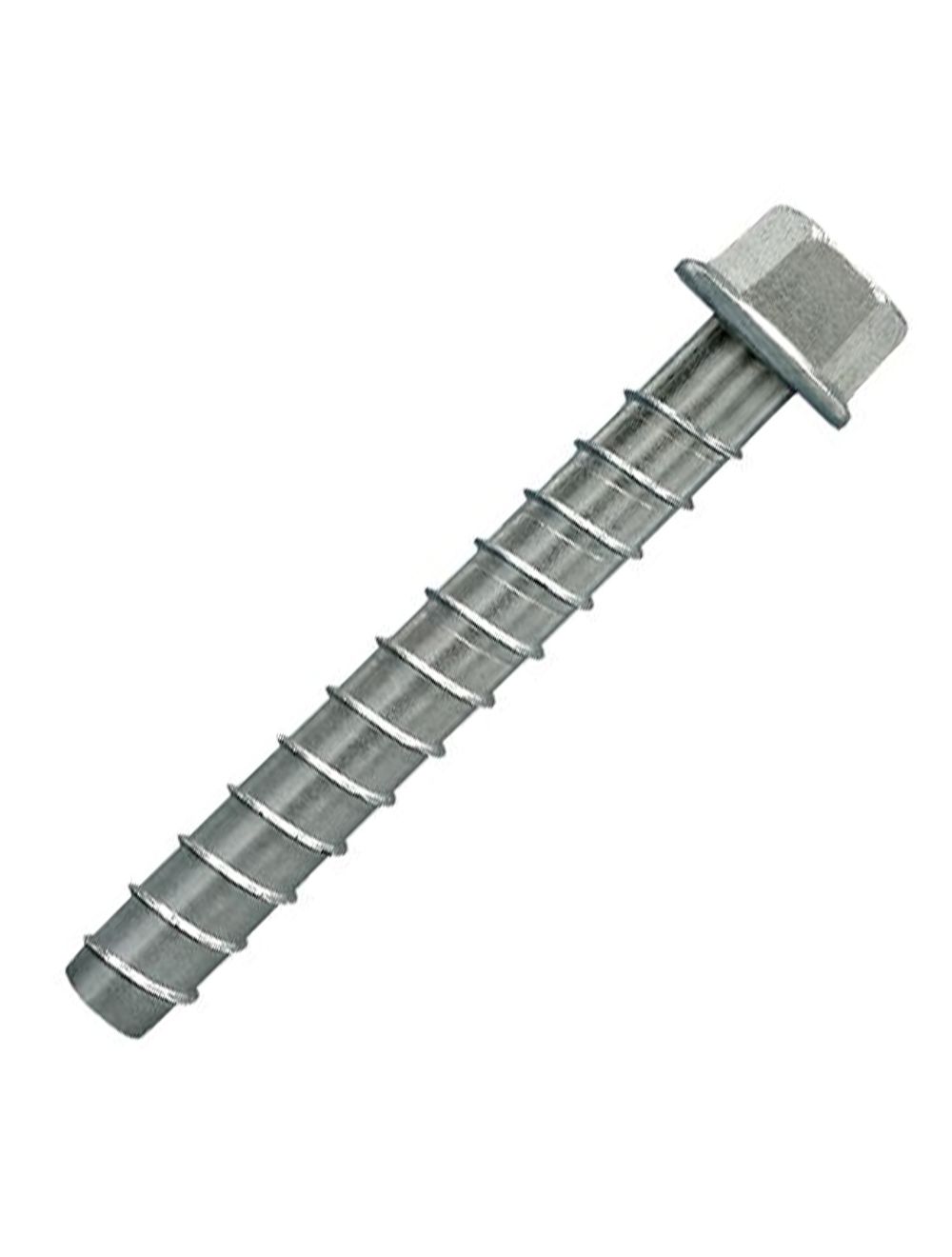

3/8" x 6" Zinc Plated Titen HD Large Diameter Screw Anchor - 30 pc box

Item# THD37600HR30 | UPC 707392584759
  • In stock at Glassboro, NJ
  • In stock at Howell, NJ
*Prices and inventory are based out of our Glassboro, NJ location. Prices and inventory can vary between locations. Call your local store to confirm pricing & availability.
  • Diameter: 3/8"
  • Length: 6"
  • Drill bit size: 3/8"
  • Material: Carbon steel
  • Coating: Zinc plated
  • Head type: 9/16" hex washer head
  • Minimum embedment: 2-1/2"
  • Removable
  • Qualified for static and seismic loading conditions
  • Suitable for non-corrosive interior environments
  • Optimum performance in both cracked and uncracked concrete
  • Self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings
  • Tested per AC193 to ensure outstanding performance in both cracked and uncracked concrete
  • Threads along the length of the anchor undercut the concrete and efficiently transfer the load to the base material for higher load capacity & vibration resistance
  • The mechanical interlock of the threads and the ratchet teeth on the underside of the head help prevent the anchor from loosening in vibratory conditions
  • The Titen HD anchor has been tested to 12.6 million vibratory cycles with no performance reductions
  • Specialized heat treating process creates superior surface hardness at the tip to facilitate cutting, while at the same time not compromising ductility within the anchor body
  • The anchor does not exert expansion forces on the base material allowing less spacing & edge distance requirements
  • Serrated teeth on the tip of the Titen HD screw anchor facilitate cutting and reduce installation torque
  • Testing shows that when compared to competitors, the Titen HD requires 50% less torque to be installed in concrete
  • Titen HD anchors are removable and ideal for temporary anchoring (e.g. formwork, bracing) or applications where fixtures may need to be moved
  • For tension load values, shear load values, load adjustment factors, edge distances, and anchor spacing requirements CLICK HERE
  • Codes: ICC-ES ESR-2713 (concrete); ICC-ES ESR-1056 (CMU); City of L.A. RR25741(concrete)City of L.A. RR25560(CMU); Florida FL 11506.7; Factory Mutual 3017082, 3035761 and 3043442
  • The Titen HD anchor has been tested in accordance with ICC-ES AC193, ACI 355.2 and ICC-ES AC106 for static tension & shear loading in cracked and uncracked concrete, seismic & wind loading in cracked and uncracked concrete & performance in uncracked masonry
  • Simpson Strong-Tie THD37400H can be used as a cross reference to HILTI Kwik-HUS EZ, Powers Wedge-Bolt and ITW Redhead LDT
  • Call For Pallet Pricing
More Information
Diameter 3/8" (0.3750)
Length 6" (6.0000)
Material Carbon Steel
Finish Zinc Plated
Head Type Hex head
UPC 707392584759
Weight 6.550000
Item Number THD37600HR30
Manufacturer Simpson Strong-Tie
