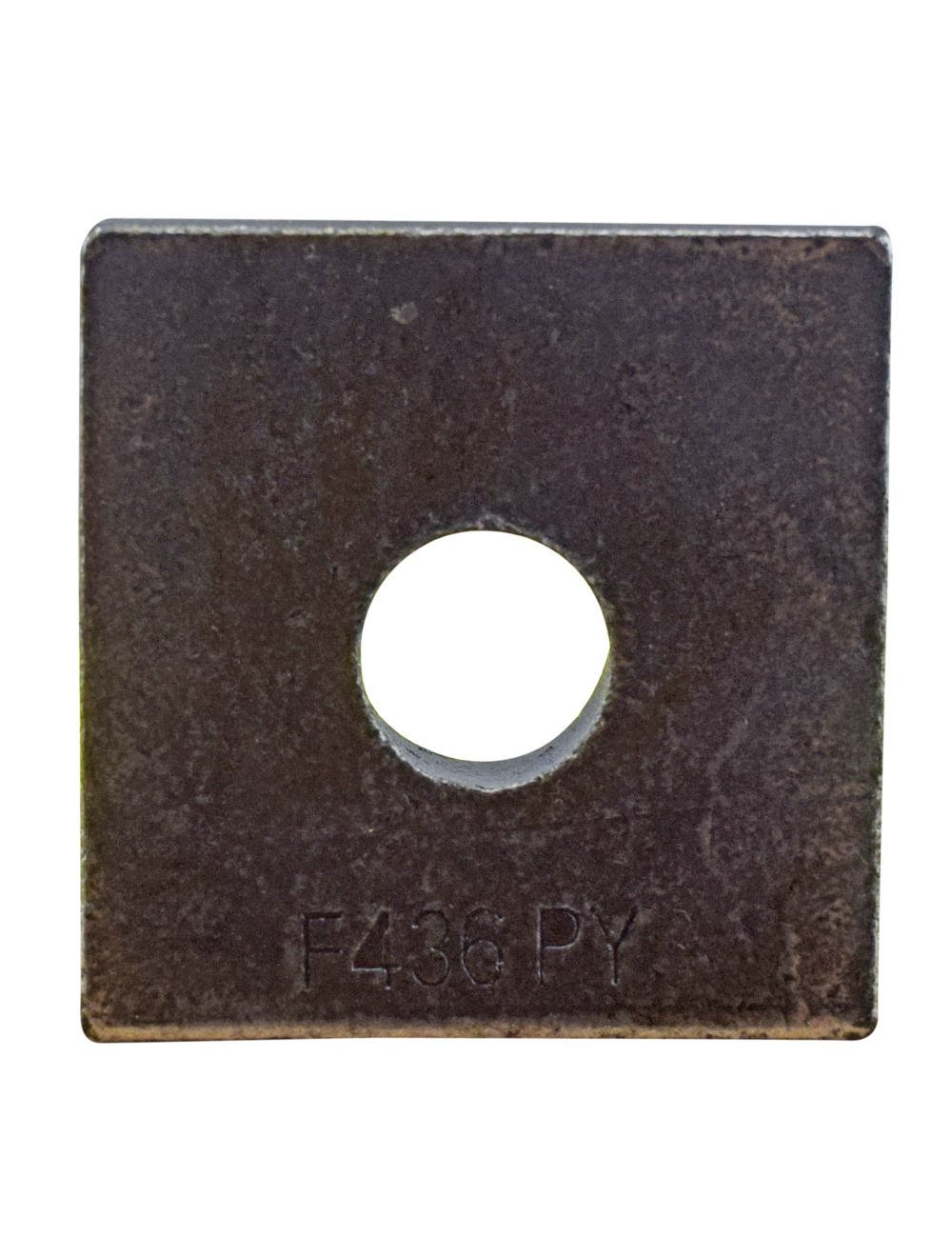

1" F436 Hardened Structural Beveled Square Washer Plain Finish - 10 pcs per bag
Item# 880001050 |
UPC 654074
$7.50
UPC
654074
Availability
- In stock at Glassboro, NJ
- In stock at Howell, NJ
- For bolt size: 1"
- Inside diameter: 1-1/8"
- Outside diameter: 1-3/4"
- Material: Hardened carbon steel
- Finish: Plain
- Specification: ASTM F436
- Grade: Type 1
- Rockwell core hardness: 38 - 45 HRC
- Wedge shaped square flat washer with one bearing surface having an oblique angle
- Used when fastening bolts through the flanges of an I-beam or channel to provide a parallel bearing surface
- Also referred to as a tapered washer
- Use with ASTM A325 & ASTM A490 structural fasteners
| Diameter | 1" (1.0000) |
|---|---|
| Grade | NA |
| Finish | Plain Finish |
| Material | NA |
| Specification | ASTM F436 |
| Inner Diameter | 1-1/8" (1.1250) |
| Outer Diameter | 1-3/4" |
| Order Qty Increment | 10 |
| Location | 34-H01 * 55_C * * |
| QTY | 465 |
| boxlabel | bags |
| upperboxlabel | Bag |
| Units | ( BOX = 90 ) ( BAG = 10 ) |
| UPC | 654074 |
| Weight | 1.790000 |
| Item Number | 880001050 |
| Manufacturer | Import |
