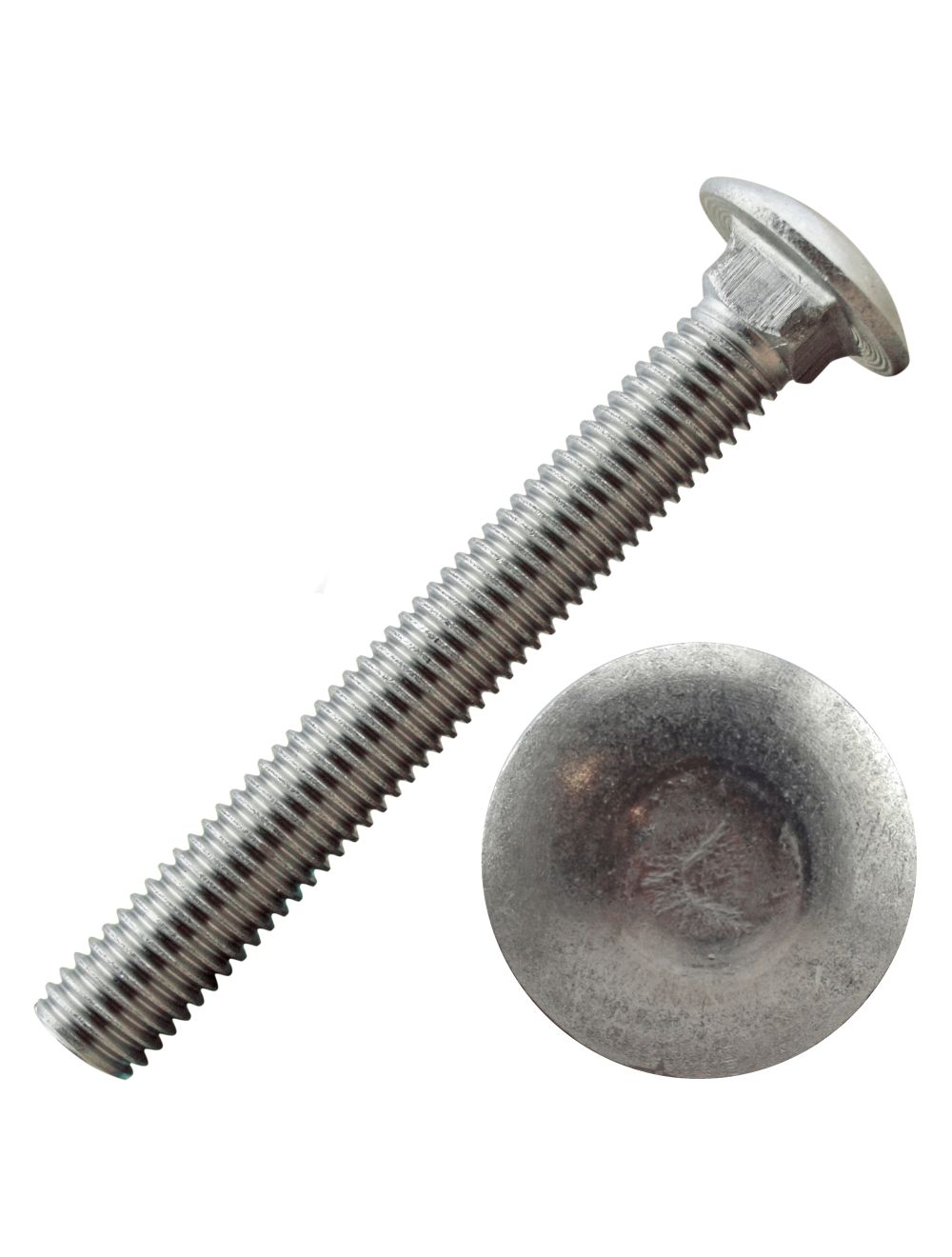

1/4-20 X 5" Carriage Bolt 18-8 Stainless Steel - 400 pcs per box
Item# 130001040 |
UPC 655288
$185.36
UPC
655288
Availability
- In stock at Glassboro, NJ
- Out of stock at Howell, NJ
- Diameter: 1/4"
- Threads per inch: 20
- Length: 5"
- Thread length: 5"
- Square neck carriage bolt
- Material: Cold worked 18-8 stainless steel
- 18-8 stainless steel contains 18% chromium and 8% nickel
- Finish: Plain
- Minimum tensile strength: 100,000 - 150,000 psi
- Rockwell core hardness: B95 - C32
- Used in wood-to-wood applications when the head may not be accessible for tightening or whenever a smooth finished look is required
- Carriage bolts are pushed into a hole equal to its diameter and then hammered in the remaining distance to lock the square neck in place
- For use in environments that require greater atmospheric corrosion resistance
- Recommended washer: 18-8 stainless steel washer
- Recommended nut: 18-8 stainless steel nut
| Diameter | 1/4" (0.2500) |
|---|---|
| Length | 5" (5.0000) |
| Thread Length | 5" (5.0000) |
| Thread Size | 20 Threads Per Inch |
| Grade | 18-8 S/S |
| Finish | Plain Finish |
| Material | Stainless Steel |
| Order Qty Increment | 400 |
| Location | 56A3 * * * |
| QTY | 2 |
| boxlabel | boxes |
| upperboxlabel | Box |
| Units | ( BOX = 500 ) ( BAG = 10 ) ( BOX3 = 400 ) ( BAG2 = 90 ) ( BOX5 = 100 ) |
| UPC | 655288 |
| Weight | 23.200000 |
| Item Number | 130001040 |
| Manufacturer | Import |
